LPMS-CURS2: OEM Version 9-Axis Inertial Measurement Unit (IMU) / AHRS with USB, CAN Bus and UART Connectivity

Description

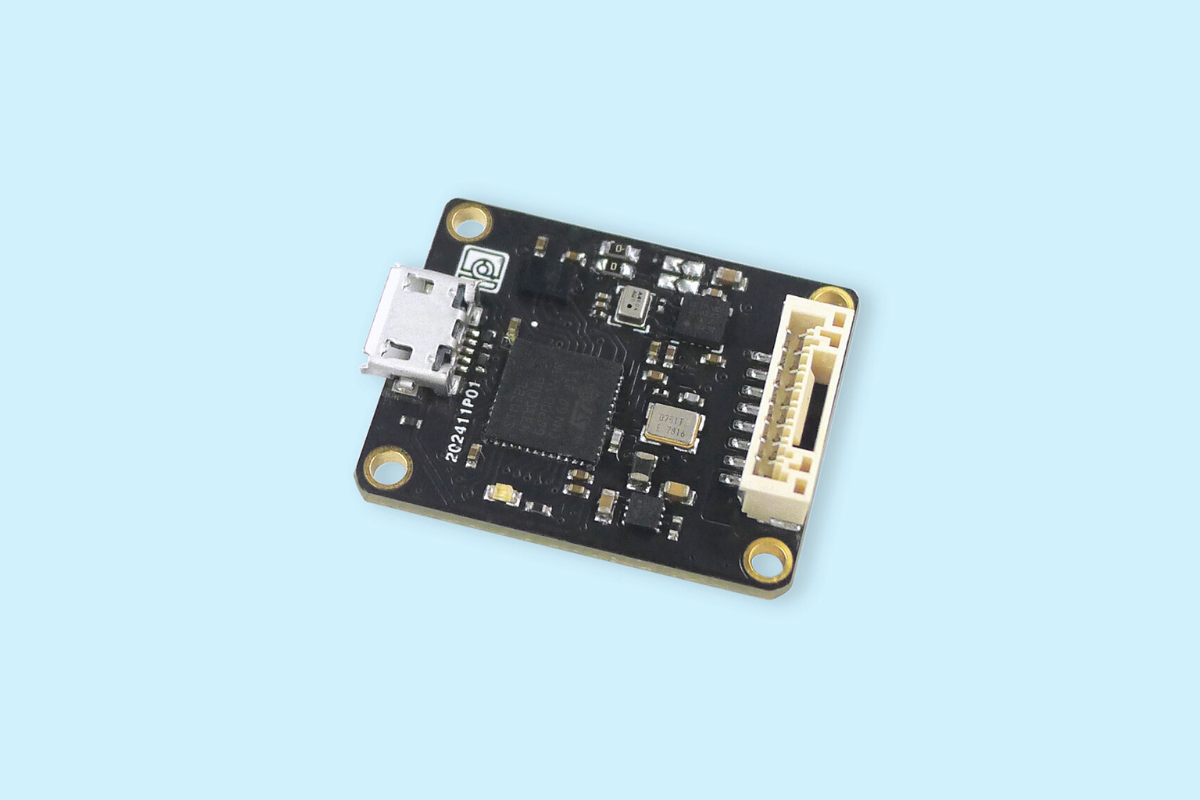

LPMS-CURS2 is a high performance miniature inertial measurement unit (IMU) with multiple communication interfaces. Integrating CAN Bus, USB and UART, the LPMS-CURS2 perfectly fits both machine and human motion measurements for size and cost sensitive applications. LPMS-CURS2 is shipped without housing and is ideal for integration with your own device.

Please note that while all versions of LPMS-CURS2 support USB communication, additionally only one (either RS232, TTL serial or CAN bus) interface is supported by the firmware. When ordering please let us know which communication mode you would like to use.

The unit contains a 32-bit digital signal processor capable of running all calculations on-board in real-time. For more information on our sensor fusion method please refer to the IMUcore description.

LPMS-CURS2’s CAN bus interface allows connecting the sensor to a larger CAN bus infrastructure. The sensor supports a minimal CANopen implementation as well as a customizable sequential CAN message format. The amount of measurement data transmitted via CAN bus can be freely configured using the LPMS-Control software. Depending on transfer rate settings of the sensor, data rates of up to 400Hz can be achieved.

Specifications

Communication interface CAN Bus, UART (RS232/TTL), USB
Communication protocol LP-CAN / CANopen (CAN port), LP-BUS (UART and USB ports)
Size 22 x 28 x 7.9 mm
Weight 3.1g
Orientation range Roll: ±180°; Pitch: ±90°; Yaw: ±180°
Resolution < 0.01°
Accuracy < 0. 5° (static), < 2° RMS (dynamic)
Accelerometer 3 axes, ±20 / ±40 / ±80 / ±160 m/s2, 16 bits
Gyroscope 3 axes, ±125 / ±245 / ±500 / ±1000 / ±2000 °/s, 16 bits
Gyroscope noise density 0.007 dps/√Hz
Static orientation stability 9 °/hour
Magnetometer 3 axes, ± 4 / ± 8 / ± 12 / ± 16 gauss, 16 bits
Pressure sensor 300 – 1100 hPa
Data output format Raw data / Euler angle / Quaternion
Data transmission rate up to 400 Hz
Power consumption < 182 mW @ 3.3 V
Power supply 5 to 15 V DC (CAN Bus and UART ports), 5 V DC (USB)
Connector Header pitch 1. 27 mm (CAN Bus and UART ports), Micro USB-B (USB)
Temperature range – 40 to +80 °C
Software C++ library for Windows, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for Windows.

Order

Product Package contents Price
LPMS-CURS2 1 x LPMS-CURS2 sensor
1 x Cable (1.27mm pitch connector)
1 x User guide card
1 x Warranty service (1 year)
