LPMS-IG1P: 9-Axis Inertial Measurement Unit (IMU) / AHRS and GPS Receiver with USB / CAN / RS232 Connectivity

9-axis IMU with GPS receiver


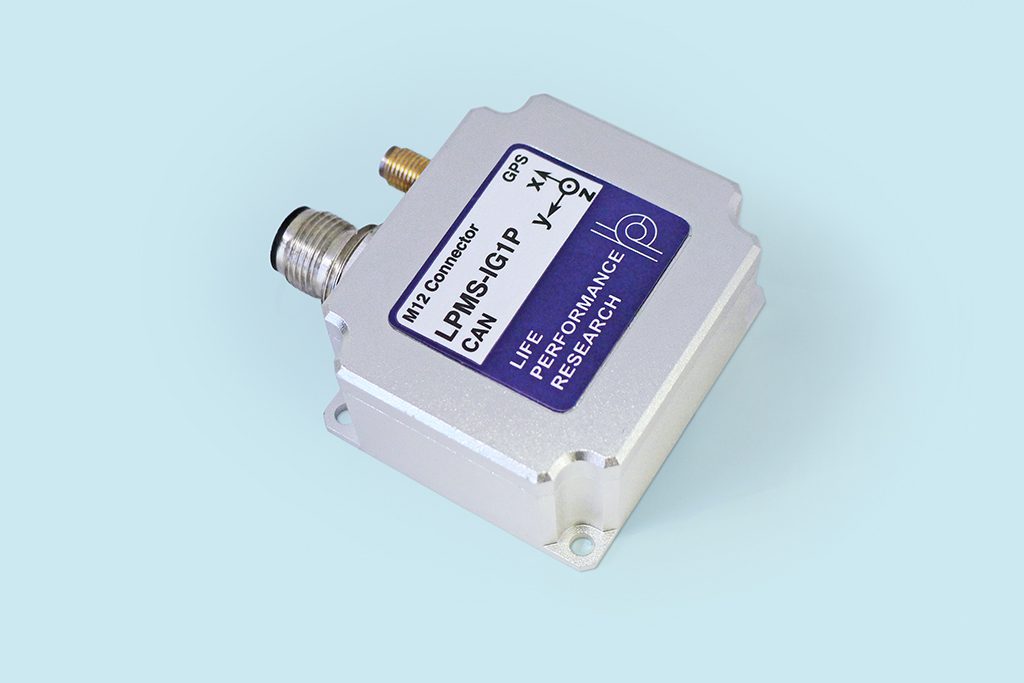

The LP-RESEARCH Motion Sensor LPMS-IG1P is a 9-Axis inertial measurement unit (IMU) / AHRS and GPS receiver with USB / CAN / RS232 connectivity in an IP67-rated enclosure (waterproof).

This unit is very versatile, performing accurate, high-speed orientation measurements. Output of three separate low-noise single-axis gyroscopes is fused with three-axis accelerometer and magnetometer data to achieve low-drift, low-latency 3D orientation information.

As the low-noise gyroscopes only support angular rates up to 400dps, we integrated an additional gyroscope for rates up to 2000dps with the device. Users can select which gyroscope they would like to use as orientation data source.

For more information on our sensor fusion method please refer to the IMUcore description. Wer offer customized algorithms for using LPMS-IG1P as dead reckoning sensor for AGV and automotive applications using a fusion of IMU, GPS and vehicle odomotery data.

LPMS-IG1P connects to a host via USB communication or using optionally either a CAN bus or RS232 connection. Please specify your preference when ordering this component.

All sensor parameters and data transmission options can be controlled by our IG1-Control software. For direct interfacing to Windows / Linux PC or embedded system we provide extensive library support.


Model name LPMS-IG1P
Communication interface USB + CAN Bus or RS232
Communication protocol LP-BUS / CANopen (partial) / sequential CAN
Size 51 x 45 x 24 mm
Weight 76 g
Orientation range Roll: ±180°; Pitch: ±90°; Yaw: ±180°
Resolution < 0.01°
Accelerometer 3 axes, ±20 / ±40 / ±80 / ±160 m/s2, 16 bits

Dual gyroscope design:

#1: 3-axis, ± 400, 24 bits

#2: 3-axis, ± 1000 / ± 2000 dps, 16 bits

Gyroscope noise density #1: 0.002 dps/√Hz, #2: 0.004 dps/√Hz
Magnetometer 3 axes, ± 4 / ± 8 / ± 12 / ± 16 gauss, 16 bits
Accuracy < 0. 1° (static), < 1° RMS (dynamic)
Static orientation stability #1: 4 °/hour, #2: 6 °/hour
Data output format Raw data / Euler angle / Quaternion
Data transmission rate 5 ~ 500 Hz
GNSS support BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS max. update rate 30 Hz
Power consumption ≤400 mW @12 V
Power supply 5 V ~ 24 V DC

Signal connector: M12

GPS antenna connector (LPMS-IG1P only)


Aluminum, IP67 rated
Temperature range -40 to +80 °C
Software IG1-Control software, C API library


Product Package contents Price

1 x LPMS-IG1P sensor

1 x Waterproof cable

1 x GPS antenna

1 x User guide card

1 x Warranty service (1 year)

Order online

Find a distributor

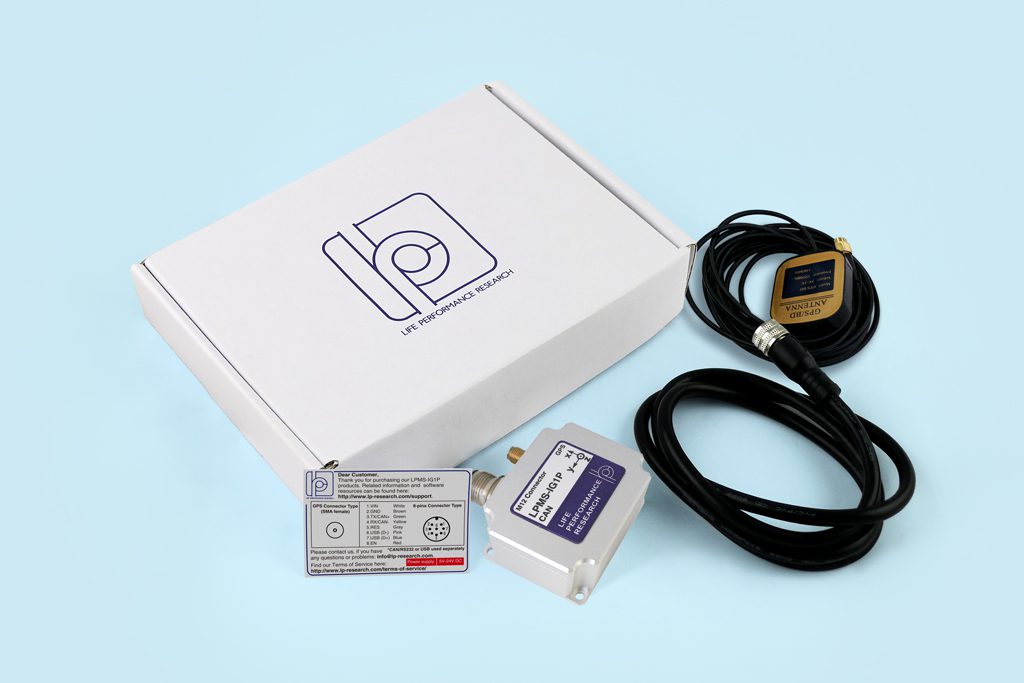

IMU with GPS antenna package contents
