Location-based Virtual Reality for Automotive Design

In cooperation with Korean automotive design solutions provider AP-Solutions, we created a large location based virtual reality installation at the Hyundai research and development center close to Seoul, Korea. As described in the video above, the system is used to showcase, amend and modify prototype and production-ready automobile designs.

LPVR Large Room Scale Tracking Engine

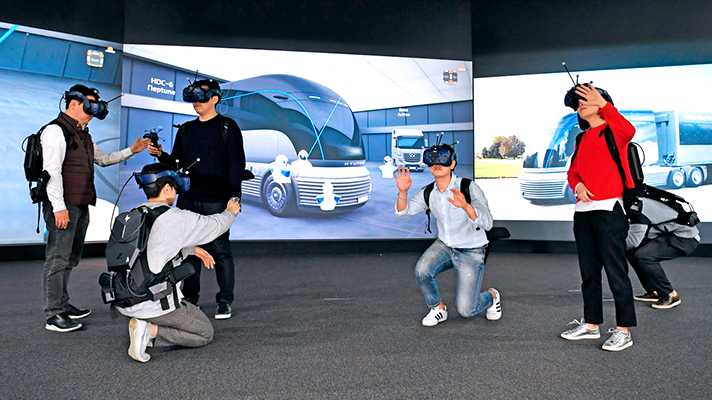

LPVR Hyundai HMD room view

The system uses optical tracking together with LP-Research’s LPVR solution to track up to 20 users wearing Vive Pro Head-mounted Displays (HMD). Each user carries a VIVE hand controller for a total of 40 tracked objects in a space close to 400sqm.

Responsiveness is achieved by using LPVR to combine LPMS IMU data and a software package to achieve optimum performance. The optical system uses 36 infrared cameras to track the 160 markers attached to the HMDs and hand controllers. The position and orientation data of each user’s HMD is combined using LP-Research’s algorithm.

The content of the virtual space is rendered using a CAD software package running on backpack PCs worn by each of the 20 users. The PCs communicate and coordinate via a central server.

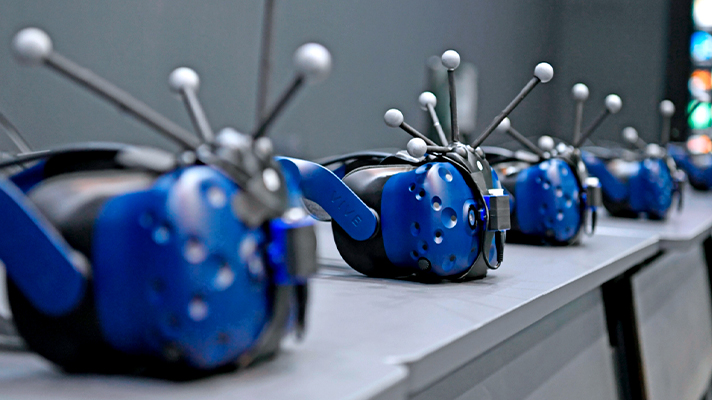

LPVR Hyundai HMD front view
