Blast from the Past – Part I: EmotionCore and Collaboration with Qualcomm

Introduction

This is the first part of our Blast from the Past series where we share some episodes from our company history. These episodes focus on collaborations and inventions that seemed very promising in the beginning, but eventually did not turn into products that we actually sold or are selling to customers.

One of these episodes is our collaboration with the US semiconductor manufacturer Qualcomm. We first connected to Qualcomm through an acquaintance in Tokyo and evenutally entered into an agreement to co-develop intellectual property related to the research field of emotional computing.

Emotional computing isn’t a new field of research. For decades computer scientists have worked on modelling, measuring and actuating human emotion. The goal of doing this accurately and predictively has so far been elusive.

The purpose of our collaboration with Qualcomm was to create intellectual property related to this topic, in the context of health care and the automotive space.

pngwing.com

Affective Computing Concepts

As part of the program we worked on various ideas ranging from relatively simple sensory devices to complete affective control systems to control the emotional state of a user. Two examples of these approaches to emotional computing are shown below.

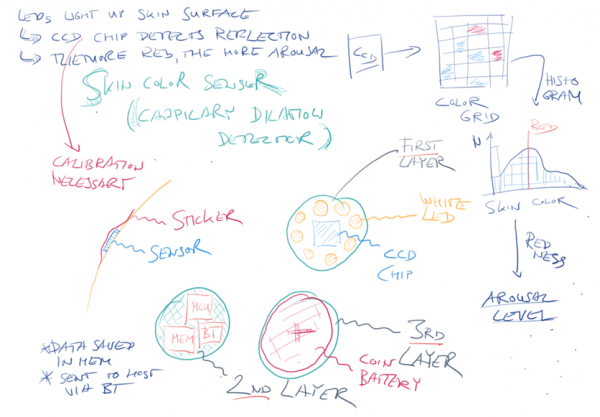

The Skin Color Sensor was supposed to have the simple function of measuring the color of the facial complexion of a user, with the goal of estimating aspects of the emotional state of the person from this data. The sensor was to have the shape of a small, unobtrusive patch to be attached to a spot on the forehead of the user.

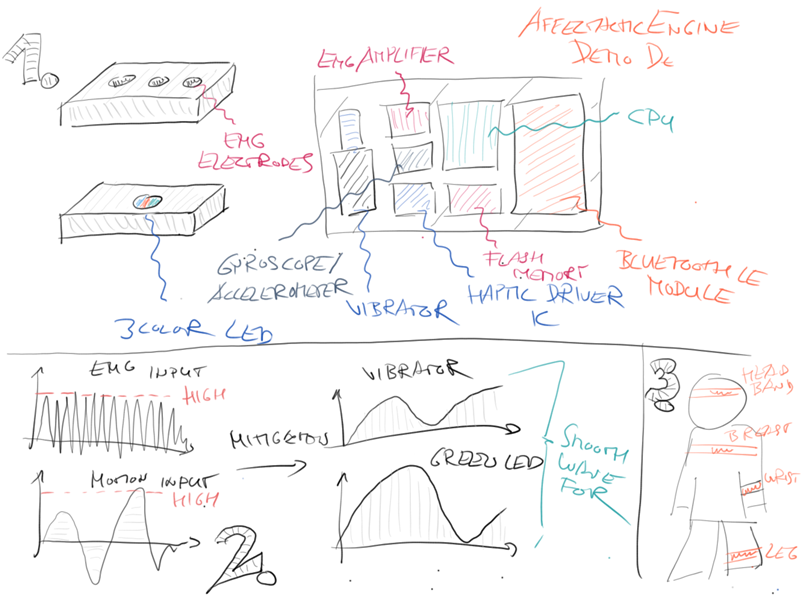

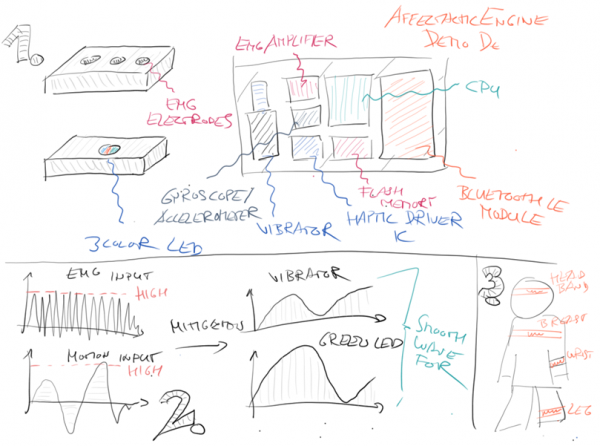

Another affective computing concept we worked on was the Affectactic Engine. A little device that would measure the emotional state of a user via an electromyography sensor and accelerometer. Simply speaking we imagined that high muscle tension and certain motion patterns would correspond to a stressed emotional state of the user or represent a “twitch” a user might have.

The user was to be reminded of entering this “stressed” emotional state by vibrations emitted from the device. The device was to be attached to the body of the user by a wrist band, with the goal of reminding the user of certain subconscious stress states.

Patent Families and Trademarks

Whereas the collaboration with Qualcomm did not result in an actual product that we eventually sold, we did register several patents in the general area of affective computing:

To represent the intellectual property and potentialy resulting products connected to this context of affective computing we created the EmotionCore trademark.

How to Use LPMS IMUs with LabView

Introduction

LabView by National Instruments (NI) is one of the most popular multi-purpose solutions for measurement and data acquisition tasks. A wide range of hardware components can be connected to a central control application running on a PC. This application contains a full graphical programming language that allows the creation of so called virtual instruments (VI).

Data can be acquired inside a LabView application via a variety of communication interfaces, such as Bluetooth, serial port etc. A LabView driver that can communicate with our LPMS units has been a frequently requested feature from our customers for some time, so that we decided to create this short example to give a general guideline.

A Simple Example

The example shown here specifically works with LPMS-B2, but it is easily customizable to work with other sensors in our product line-up. In order to communicate with LPMS-B2 we use LabView’s built-in Bluetooth access modules. We then parse the incoming data stream to display the measured values.

The source code repository for this example is here.

Figure 1 – Overview of a minimal virtual instrument (VI) to acquire data from LPMS-B2

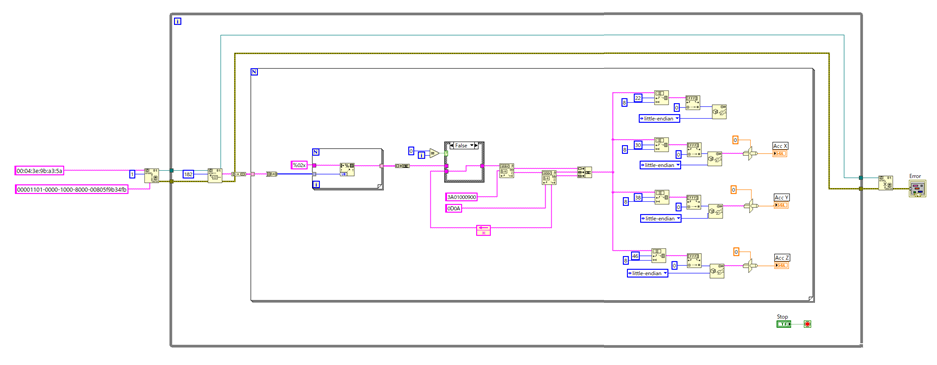

Fig. 1 shows an overview of the example design to acquire the accelerometer X, Y, Z axes of the IMU and displays them on a simple front panel. Fig. 2 & 3 below show the virtual instrument in more detail. After reading out the raw data stream from the Bluetooth interface, this data stream is converted into a string. The string is then evaluated to find the start and stop character sequence. The actual data is finally extracted depending on its position in the data packet.

Figure 2 – Bluetooth access and initial data parsing

Figure 3 – Extraction of timestamp, accelerometer X, Y, Z values

Notes

Please note that the example requires manually entering the Bluetooth ID of the LPMS-B2 in use. The configuration of the data parsing is static. Therefore the output data of the sensor needs to be configured and saved to sensor flash memory in the LPMS-Control application. For reference please check the LPMS manual.

An initial version of this virtual instrument was kindly provided to us by Dr. Patrick Esser, head of the Movement Science Group at Oxford Brooks University, UK.

OpenZen 1.0 Release

Going Full Circle for Sensor Data Streaming with OpenZen

Since the foundation of LP-Research, it is not only important for us to provide excellent hardware to our customers but we also want to provide software components which ease the adoption and usage of our products. Over the years, we have provided various libraries to support customers using our sensor hardware on a diverse set of platforms.

As our range of sensor offerings is growing, we realized that we need to consolidate our software library stack while still supporting multiple platforms. We wanted to use this opportunity to create a more modular system to work with sensors with various measurement components.

Figure 1 – OpenZen Unity plugin connected to a LPMS-CU2 sensor and live visualization of sensor orientation.

Based on theses requirements, we developed OpenZen. It is our take on a high performance sensor data streaming and processing library. It combines our experience gained during mopre thant five years of sensor data processing with modern software techniques. The core of OpenZen is developed with the modern C++14 language. We are hosting the source code in an open source repository for seamless public domain access to learn and contribute to the code base.

Core Concept

One basic principle of OpenZen is to abstract the sensor components provided by a sensor from the transport layer of the communication. In this way, once the user is familiar with the OpenZen API, a wide range of sensor types via various connection layers can be used. To reach the lowest latency and the highest sensor data throughput, we designed OpenZen to be fully event-based and without any polling loops which could introduce delays.

Sensor Types and Connectivity

With release 1.0, OpenZen provides a sensor interface for the measurements of inertial-measurement units (IMU) and the output of global navigation satellite systems (GNSS). For example, our new LPMS-IG1P sensor is a combined IMU and GNSS-unit. Both units can be read-out via OpenZen.

A list of supported sensors is here.

OpenZen supports sensor connections via various interfaces like USB, serial port, CAN-Bus and Bluetooth. Furthermore, measurement data from sensors can also be streamed via a network and received on a second system by an OpenZen instance.

A list of supported transport layers is here.

Operating Systems and Programming Languages

Currently, OpenZen can be compiled and used on Windows, Linux and MacOS systems. We are working on ports to more platforms, for example Android. Due to its modular design, the OpenZen API can be accessed from many programming languages. At this time, we support the C, C++ and C# programming languages and we provide a ready-to-go Unity plugin.

Optical-Inertial Sensor Fusion

Optical position tracking and inertial orientation tracking are well established measurement methods. Each of these methods has its specific advantages and disadvantages. In this post we show an opto-inertial sensor fusion algorithm that joins the capabilities of both to create a capable system for position and orientation tracking.

How It Works

The reliability of position and orientation data provided by an optical tracking system (outside-in or inside-out) can for some applications be compromised by occlusions and slow system reaction times. In such cases it makes sense to combine optical tracking data with information from an inertial measurement unit located on the device. Our optical-intertial sensor fusion algorithm implements this functionality for integration with an existing tracking system or for the development of a novel system for a specific application case.

The graphs below show two examples of how the signal from an optical positioning system can be improved using inertial measurements. Slow camera framerates or occasional drop-outs are compensated by information from the integrated inertial measurement unit, improving the overall tracking performance.

Combination of Several Optical Trackers

For a demonstration, we combined three NEXONAR IR trackers and an LPMS-B2 IMU, mounted together as a hand controller. The system allows position and orientation tracking of the controller with high reliability and accuracy. It combines the strong aspects of outside-in IR tracking with inertial tracking, improving the system’s reaction time and robustness against occlusions.

Optical-Inertial Tracking in VR

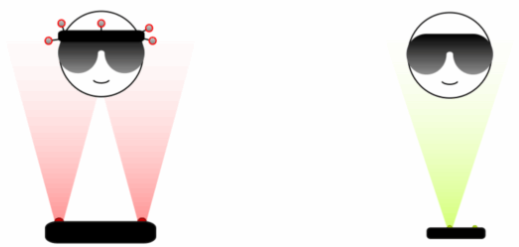

The tracking of virtual reality (VR) headsets is one important area of application for this method. To keep the user immersed in a virtual environment, high quality head tracking is essential. Using opto-inertial tracking technology, outside-in tracking as well as inside-out camera-only tracking can be significantly improved.

Machine Learning for Context Analysis

Deterministic Analysis vs. Machine Learning for Context Analysis

Machine learning for context analysis and artificial intelligence (AI) are important methods that allow computers to classify information about their environment. Today’s smart devices integrate an array of sensors that constantly measure and save data. On the first thought one would image that the more data is available, the easier it is to draw conlusions from this information. But, in fact larger amounts of data become harder to analyze using deterministic methods (e.g. thresholding). Whereas such methods by themselves can work efficiently, it is difficult to decide which analysis parameters to apply to which parts of the data.

Using machine learning techniques on the other hand this procedure of finding the right parameters can be greatly simplified. By teaching an algorithm which information corresponds to a certain outcome using training and verification data, analysis parameters can be determined automatically or at least semi-automatically. There exists a wide range of machine learning algorithms including the currently very popular convolutional neural networks.

Context analysis setup overview

Figure 1 – Overview of the complete analysis system with its various data sources

Context Analysis

Many health care applications rely on the correct classification of a user’s daily activities, as these reflect strongly his lifestyle and possibly involved health risks. One way of detecting human activity is monitoring their body motion using motion sensors such as our LPMS inertial measurement unit series. In the application described here we monitor a person’s mode of transportation, specifically

  1. Rest
  2. Walking
  3. Running
  4. In car
  5. On train

To illustrate the results for deterministic analysis vs. machine learning for context analysis approach we first implemented a state machine based on deterministic analysis parameters. An overview of the components of this system are shown in Figure 1.

Deterministic approach overview

Figure 2 – Deterministic approach

The result (Figure 2) is a relatively complicated state machine that needs to be very carefully tuned. This might have been because of our lack of patience, but in spite of our best efforts we were not able to reach detection accuracies of more than around 60%. Before spending a lot more time on manual tuning of this algorithm we switched to a machine learning approach.

Machine learning approach overview

Figure 3 – Machine learning approach

The eventual system structure shown in Figure 3 looks noticeably simpler than the deterministic state machine. Besides standard feature extraction, a central part of the algorithm is the data logging and training module. We sampled over 1 milion of training samples to generate the parameters for our detection network. As a a result, even though we used a relatively simple machine learning algorithm, we were able to reach a detection accuracy of more than 90%. A comparison between ground truth data and classification results from raw data is displayed in Figure 4.

Context analysis algorithm result

Figure 4 – Result graphs comparing ground truth and analysis output for ~1M data points

Conclusion

We strongly belief in the use of machine learning / AI techniques for sensor data classification. In combination with LP-RESEARCH sensor fusion algorithms, these methods add a further layer of insight for our data anlysis customers.

If this topic sounds familiar to you and you are looking for a solution to a related problem, contact us for further discussion.
