LPMS-IG1: Ultra Low-Noise 9-Axis Inertial Measurement Unit (IMU) / AHRS with USB / CAN / RS232 Connectivity

Description

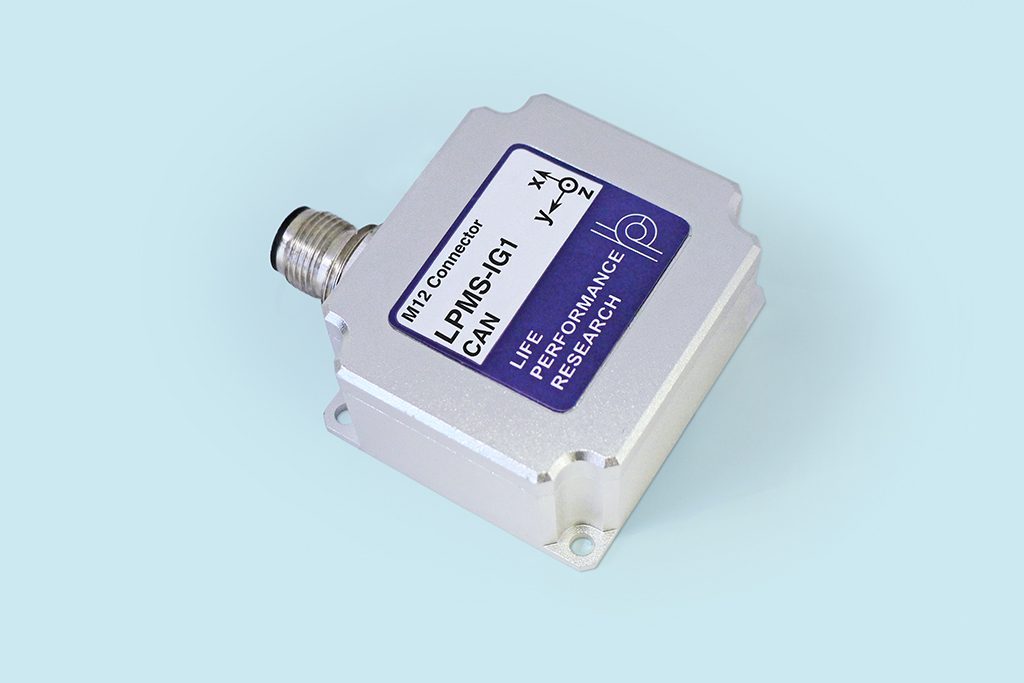

The LP-RESEARCH Motion Sensor LPMS-IG1 is an inertial measurement unit (IMU) / attitude and heading reference system (AHRS) in an IP67-rated enclosure (waterproof).

The unit is very versatile, performing accurate, high-speed orientation measurements. The output of three separate low-noise single-axis gyroscopes is fused with three-axis accelerometer and magnetometer data to achieve low-drift, low-latency 3D orientation information.

As the low-noise gyroscopes only support angular rates up to 400dps, we integrated an additional gyroscope for rates up to 2000dps with the device. Users can select which gyroscope they would like to use as orientation data source.

For more information on our sensor fusion method please refer to the IMUcore description.

LPMS-IG1 connects to a host via USB communication or using optionally either a CAN bus or RS232 connection. Please specify your preference when ordering this component.

All sensor parameters and data transmission options can be controlled by our IG1-Control software. For direct interfacing to Windows / Linux PC or embedded system we provide extensive library support.

Specifications

Model name LPMS-IG1
Communication interface USB + CAN Bus or RS232
Communication protocol LP-BUS / CANopen (partial) / sequential CAN
Size 51 x 45 x 24 mm
Weight 76 g
Orientation range Roll: ±180°; Pitch: ±90°; Yaw: ±180°
Resolution < 0.01°
Accelerometer 3 axes, ±20 / ±40 / ±80 / ±160 m/s2, 16 bits
Gyroscope

Dual gyroscope design:

#1: 3-axis, ± 400, 24 bits

#2: 3-axis, ± 1000 / ± 2000 dps, 16 bits

Gyroscope noise density #1: 0.002 dps/√Hz, #2: 0.004 dps/√Hz
Magnetometer 3 axes, ± 4 / ± 8 / ± 12 / ± 16 gauss, 16 bits
Accuracy < 0. 1° (static), < 1° RMS (dynamic)
Static orientation stability #1: 4 °/hour, #2: 6 °/hour
Data output format Raw data / Euler angle / Quaternion
Data transmission rate 5 ~ 500 Hz
Power consumption ≤400 mW @12 V
Power supply 5 V ~ 24 V DC
Connector

Signal connector: M12

GPS antenna connector (LPMS-IG1P only)

Housing/td>

Aluminum, IP67 rated
Temperature range -40 to +80 °C
Software IG1-Control software, C API library

Order

Product Package contents Price

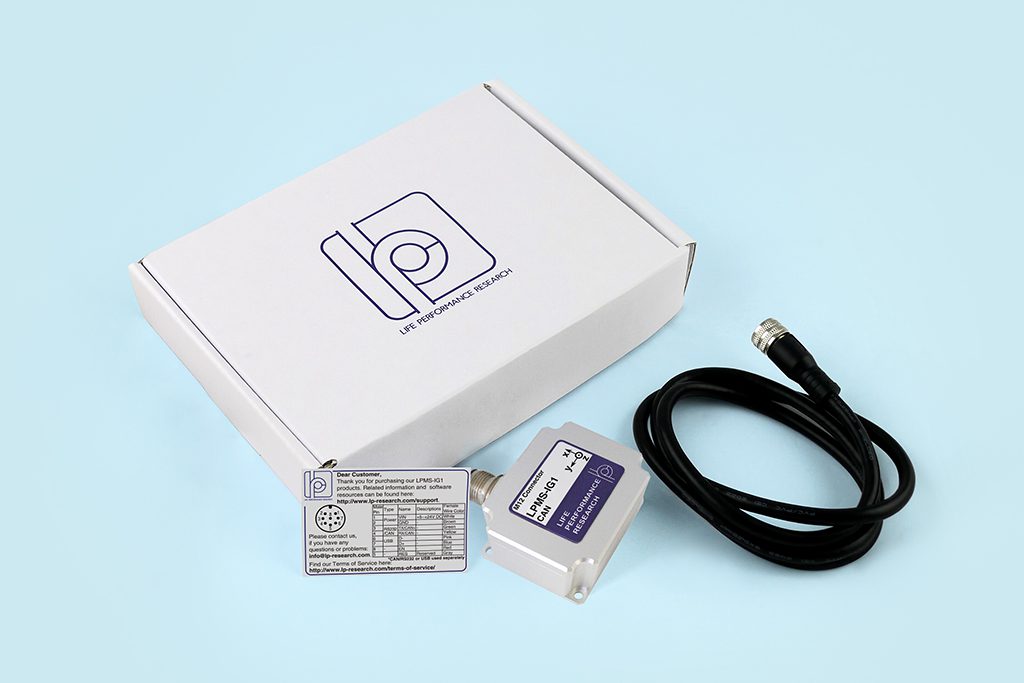

LPMS-IG1

1 x LPMS-IG1 sensor (IMU part only, without GPS)

1 x Waterproof cable

1 x User guide card

1 x Warranty service (1 year)
